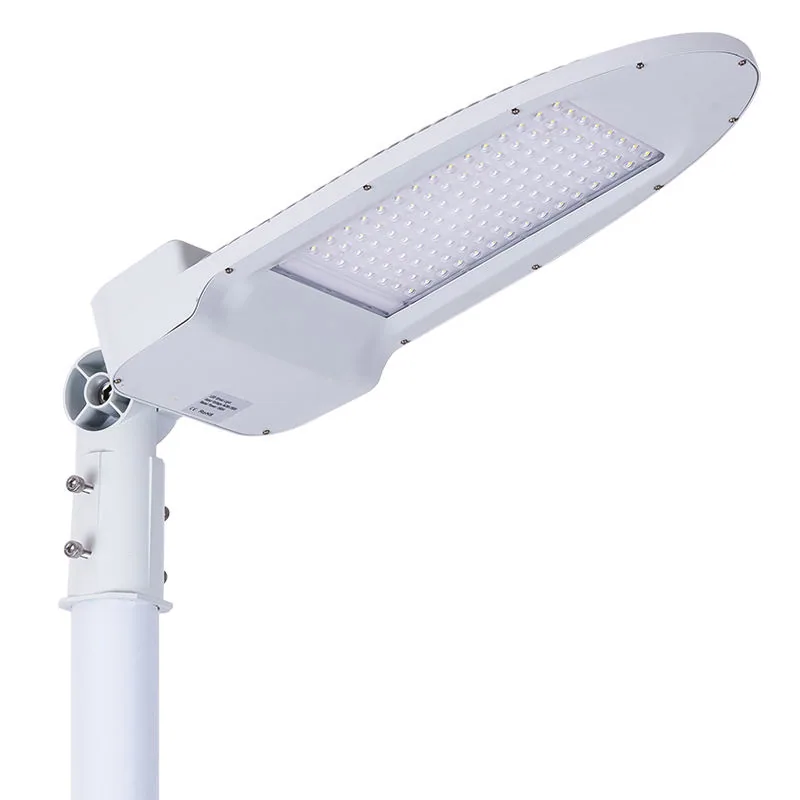

ML7 Modular LED Street Light (2 Sizes)
型号：ML7
Slim modular AC LED street light in two sizes (60 / 120 SMD 5050), AC 85-305V, for 8-15m mounting.
质保
3-5 年
起订量
10 套
交期
15-25 天
CE
已认证
RoHS
已认证
ISO 9001
已认证
| LED | SMD 5050 |
|---|---|
| Input Voltage | AC 85-305V |
| Size Options | L575*W245*H80MM / L675*W300*H80MM |
| LED Quantity Options | 60pcs / 120pcs |
| Installation Height | 8-10m / 10-15m |
| Material | Aluminum + PC |
| Warranty | 3 years |
产品说明
它做什么。

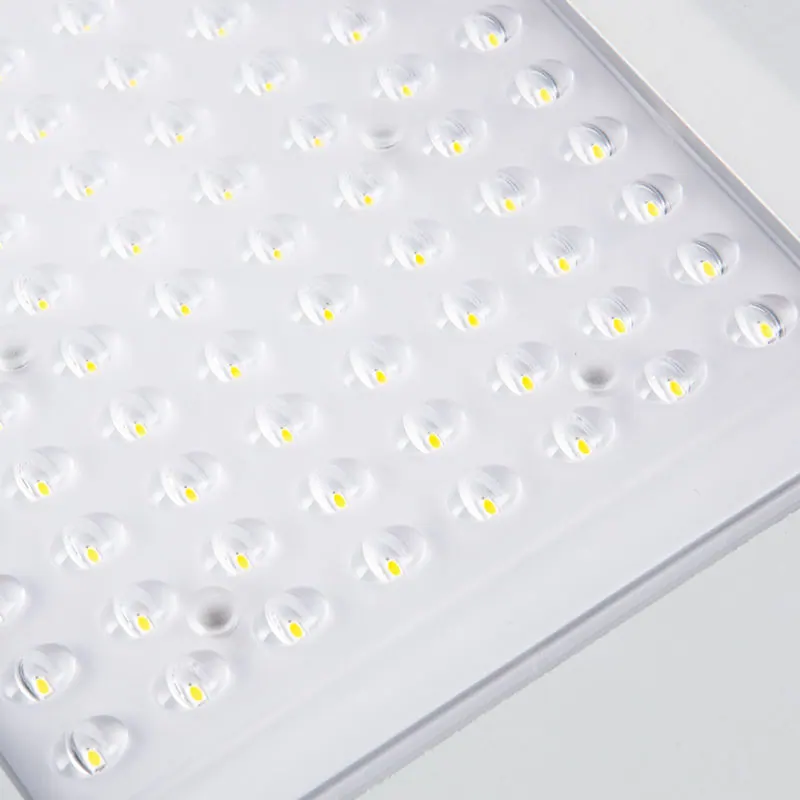

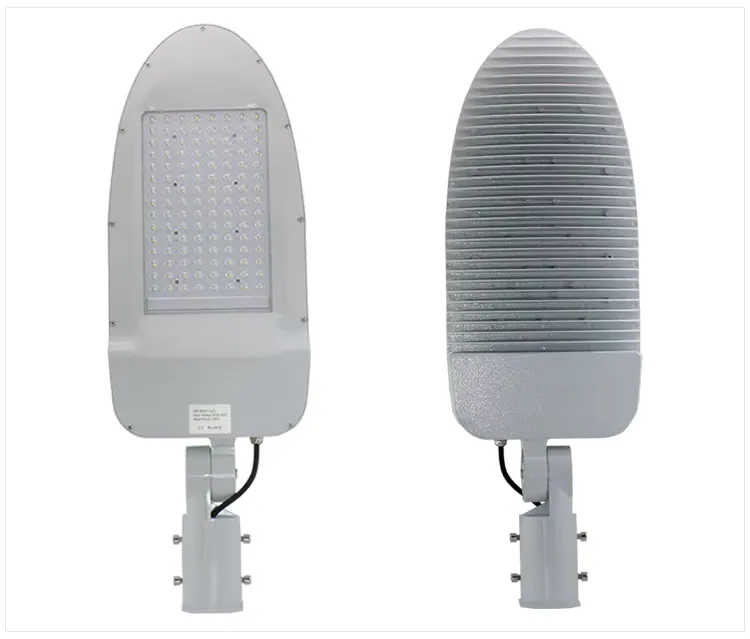

The ML7 is a slim-profile modular AC-powered LED street light in two body lengths — L575 and L675mm — carrying 60 and 120 SMD 5050 emitters. The low 80mm profile reduces wind loading, which matters on taller poles and exposed coastal or highway sites.

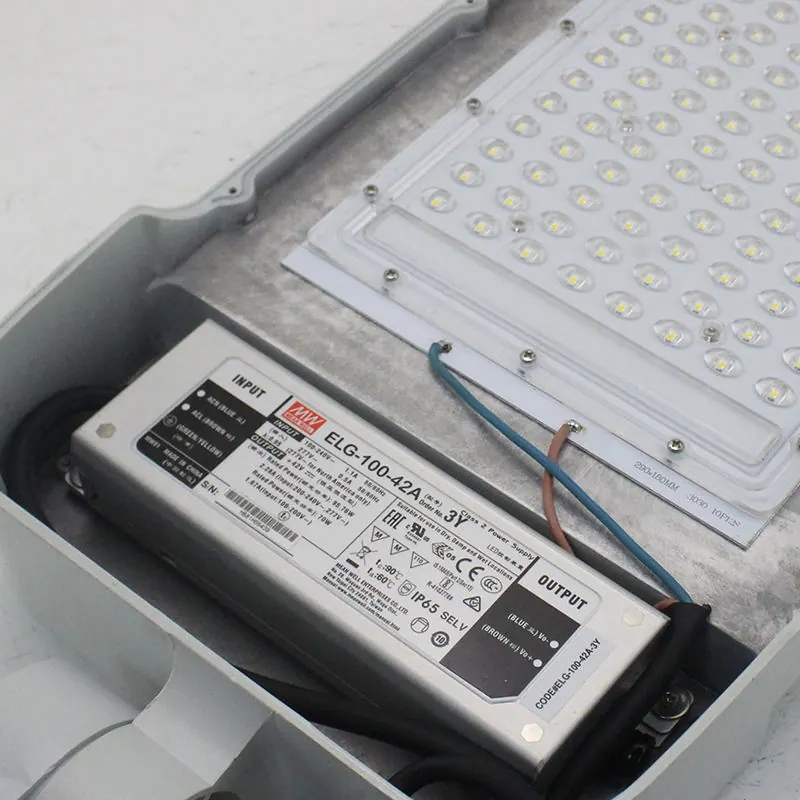

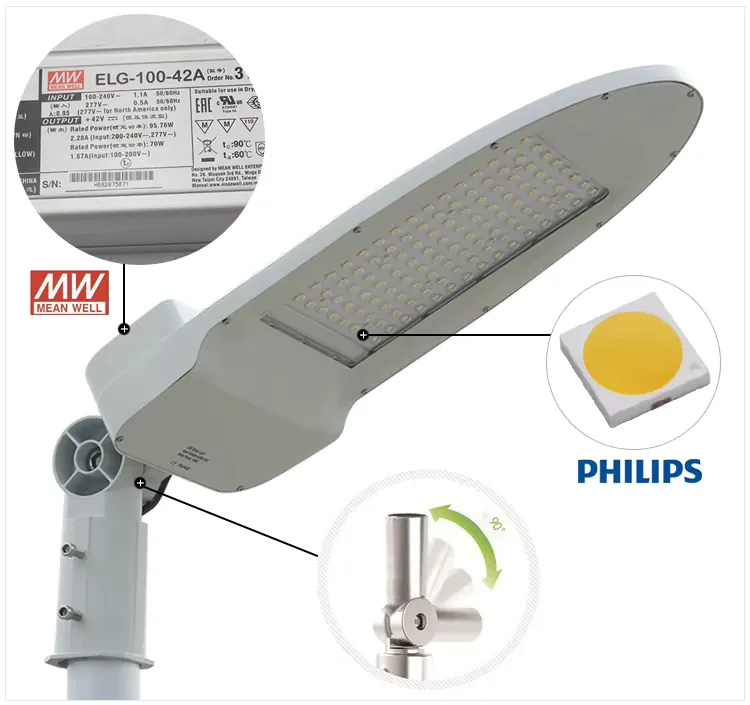

Universal AC 85-305V input. The two sizes suit mounting heights of 8-10m and 10-15m respectively, covering secondary roads through to main arterial routes. Die-cast aluminium housing, PC lens, and a modular LED board layout for field serviceability.

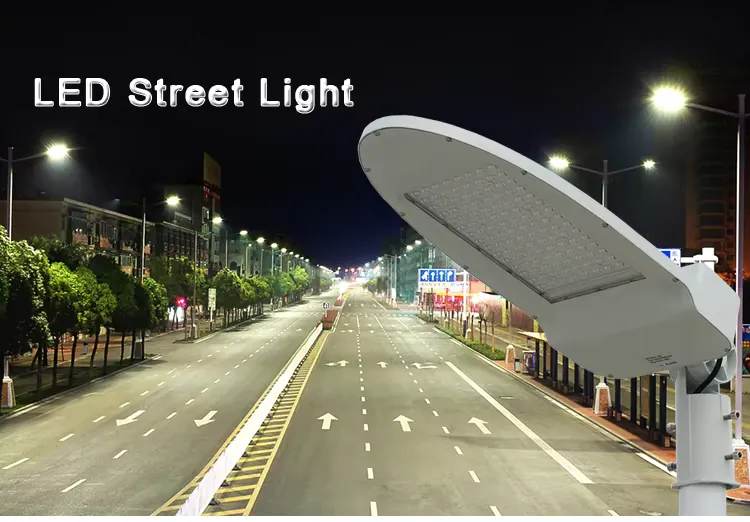

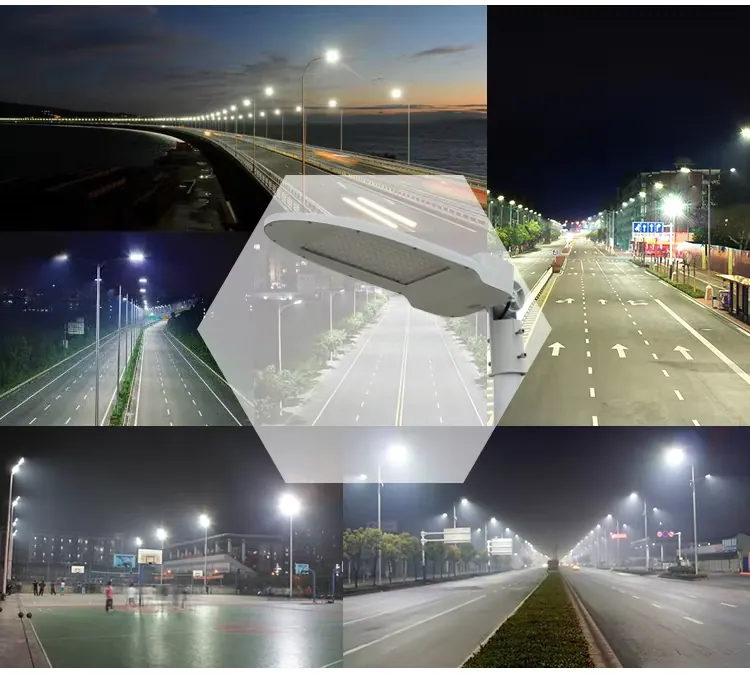

Common applications: main roads, arterial routes, highways and slip roads, industrial estates, ports, and large car parks.
产品细节
近距离观察。

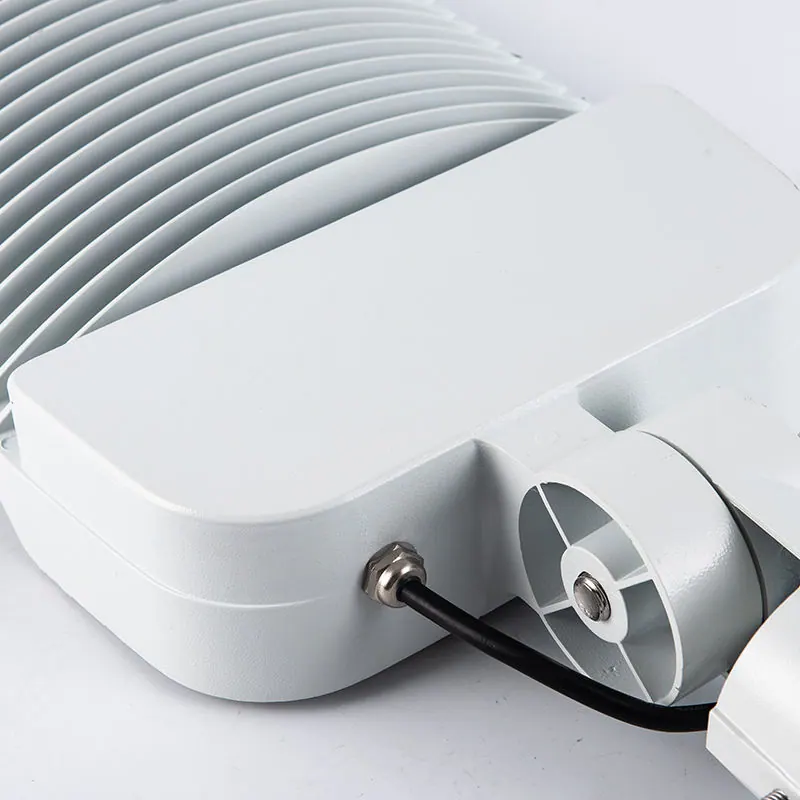

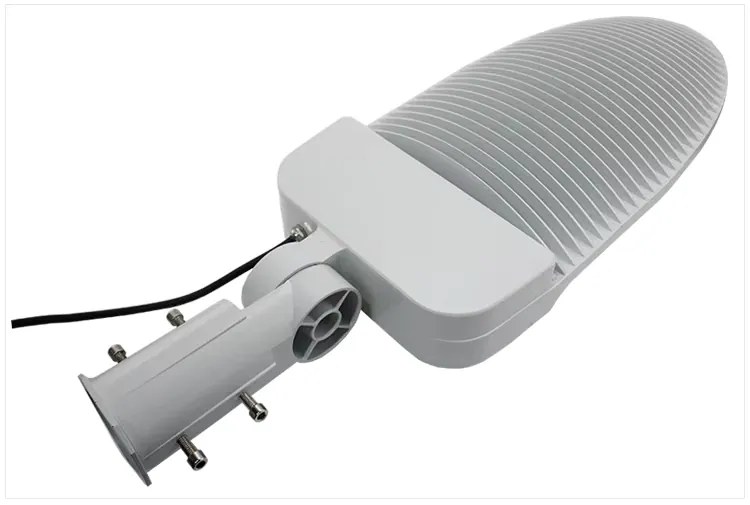

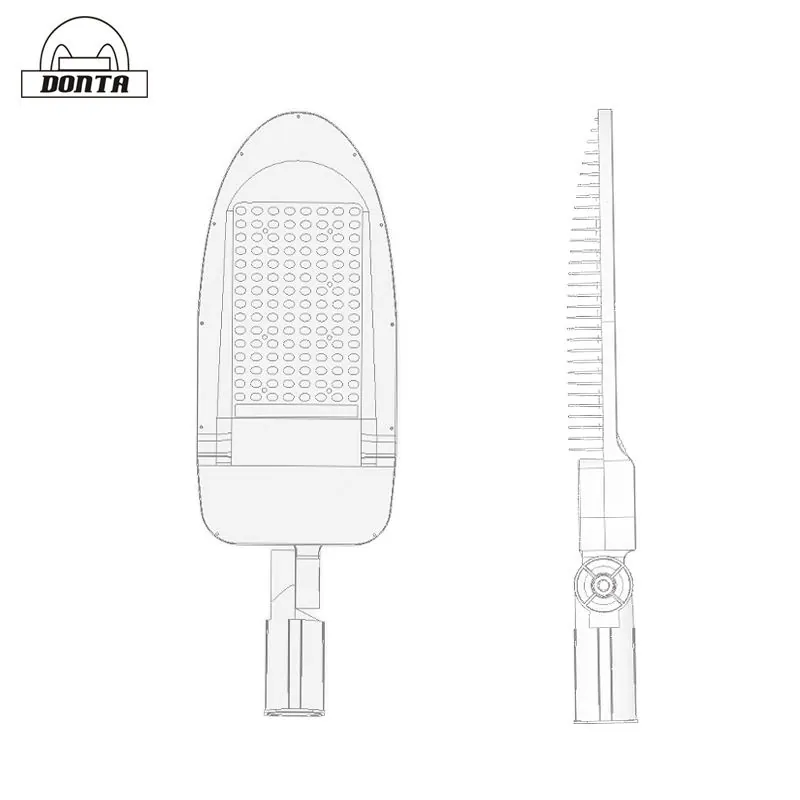

尺寸结构、应用现场、认证文件。 点击任意缩略图查看大图。
8 张细节图
可选型号
2 种配置。
同一产品族，多种功率与尺寸。按项目灯杆高度与照明需求选对应 SKU。
| SKU | LED 数 | 尺寸 |
|---|---|---|
| ML7-2 | 60 | L575*W245*H80MM |
| ML7-3 | 120 | L675*W300*H80MM |
质保多久？
整灯 3 年，LED 模组 5 年，太阳能板 10 年。任何问题由我们承担换货。
起订量是多少？
标准款 10 套起订；完全定制款 50 套起订；1-3 套样品可现货发货（需加少量加急费）。
交期多久？
样品 7-15 天；500 套以下批量 15-25 天；500-2000 套 25-35 天。每次报价都会确认准确交期。
怎么安装？
每批货都附纸质安装指南。多数灯具用 4 颗 M8 螺栓固定到标准 60mm 灯杆，无需特殊工具。
