E2 LED High Bay Light (100W, AC Powered)
型号：E2
100W AC-powered LED high bay light with a flat round body with compact driver housing, SMD 2835 LED, IP65 rating and AC 85~240V universal input.
质保
3-5 年
起订量
10 套
交期
15-25 天
CE
已认证
RoHS
已认证
ISO 9001
已认证
| Size | ⌀301*H120MM |
|---|---|
| LED | SMD 2835 |
| Power | 100W |
| Input Voltage | AC 85~240V |
| IP Rating | IP65 |
| Material | Die-cast aluminum + PC lens |
| Warranty | 3 years |
产品说明
它做什么。

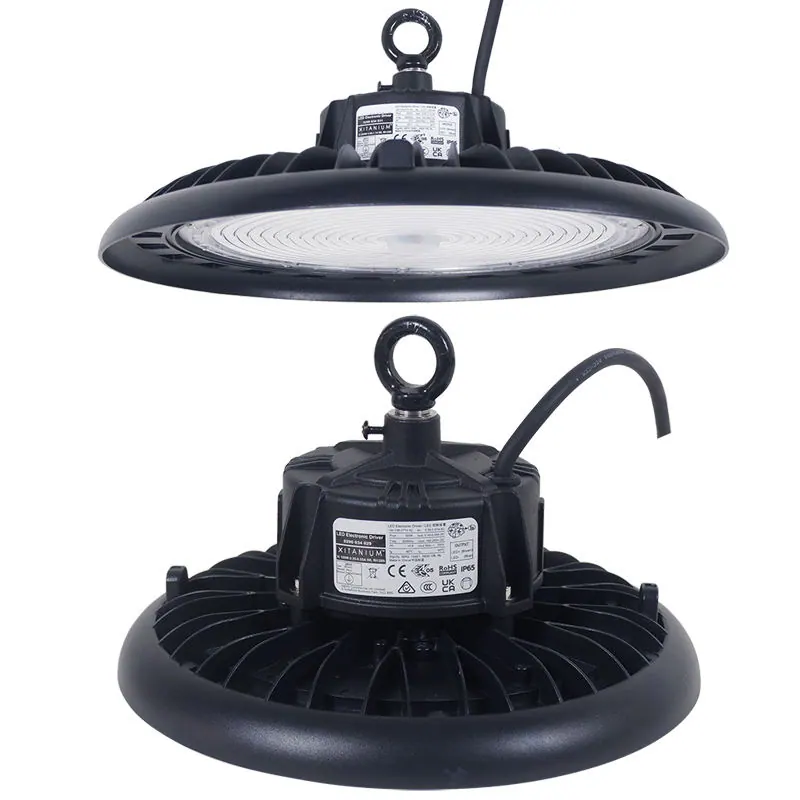

The E2 is a 100W AC-powered LED high bay light built for replacing 250-400W metal halide and sodium high bays. A flat round body with compact driver housing gives it a distinct look while keeping the thermal path short and the weight low.
SMD 2835 LED emitters behind a PC lens deliver wide, even light distribution across a mounting height of 6-10m. Universal AC 85~240V input means one SKU covers most single- and three-phase markets without a separate driver SKU. Die-cast aluminium housing, IP65 rating, and an eye-bolt hanger for chain or hook mounting.

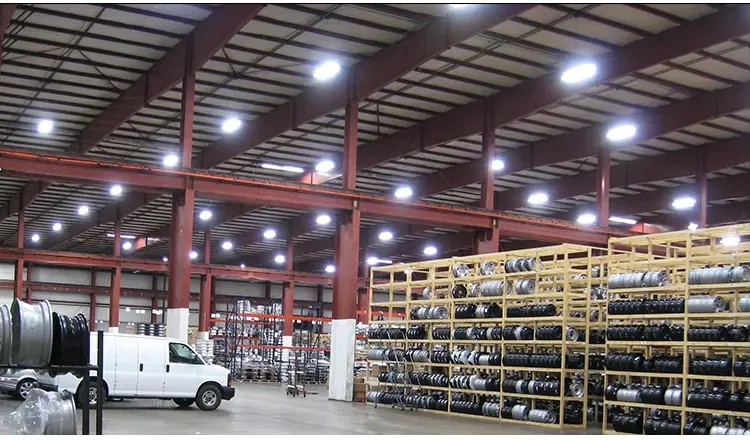

Common applications: warehouses, factory floors, workshops, logistics centres, exhibition halls, gymnasiums.
产品细节
近距离观察。
尺寸结构、应用现场、认证文件。 点击任意缩略图查看大图。
8 张细节图
质保多久？
整灯 3 年，LED 模组 5 年，太阳能板 10 年。任何问题由我们承担换货。
起订量是多少？
标准款 10 套起订；完全定制款 50 套起订；1-3 套样品可现货发货（需加少量加急费）。
交期多久？
样品 7-15 天；500 套以下批量 15-25 天；500-2000 套 25-35 天。每次报价都会确认准确交期。
怎么安装？
每批货都附纸质安装指南。多数灯具用 4 颗 M8 螺栓固定到标准 60mm 灯杆，无需特殊工具。
