Resources · PDF library

Solar light datasheets.

Every Xiuben product, one PDF each. Specs, dimensions, certifications, MOQ, lead time. Forward them to your boss, your engineer, or your procurement team — no login, no email gate.

77 PDFs

ac led

B2 Modular LED Flood Light (3 Sizes)

Modular AC LED flood light in three sizes (96 / 144 / 192 LEDs), SMD 3030, CRI≥75Ra, dual 70°+140° beam, IP65.

PDF WhatsApp

solar accessory

BW-A Solar Flood Light

BW-A

High-output solar flood light for off-grid area lighting. SMD3030 96pcs LED, 3.2V/45AH battery, IP65, 120° beam.

PDF WhatsApp

solar accessory

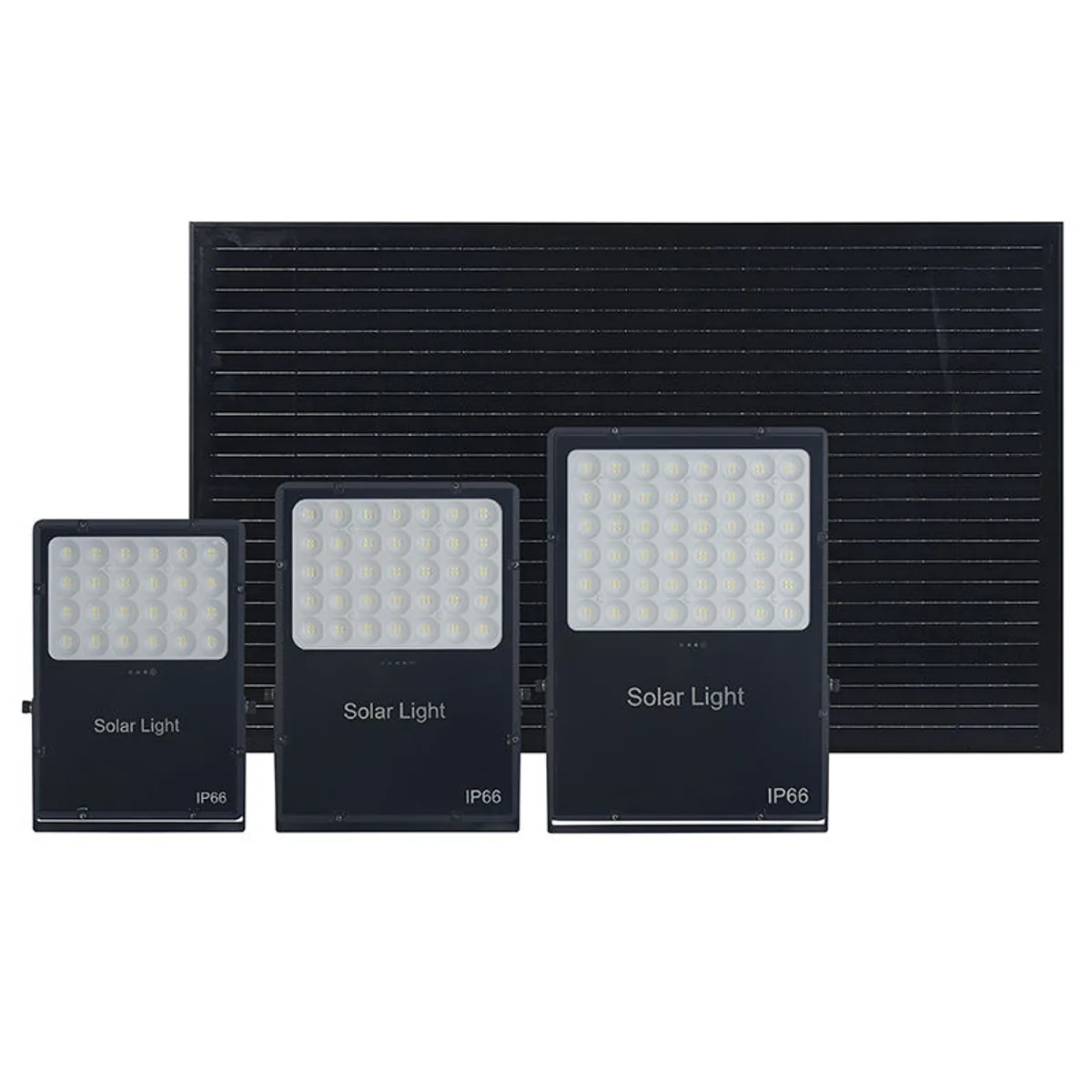

BW-B Solar Flood Light

BW-B

High-output solar flood light for off-grid area lighting. SMD3030 144pcs LED, 3.2V/60AH battery, IP65, 120° beam.

PDF WhatsApp

solar accessory

BW-C Solar Flood Light

BW-C

High-output solar flood light for off-grid area lighting. SMD3030 192pcs LED, 3.2V/75AH battery, IP65, 120° beam.

PDF WhatsApp

split

BY-3A Split Solar Street Light

BY-3A

The BY-3A split solar street light separates the LED engine and battery from the solar panel — higher wattage, longer autonomy, easier maintenance. 3.2V 150AH / 3.2V 300AH battery, 8-15m pole.

PDF WhatsApp

all in one

CF2040 All-in-One Solar Street Light

CF2040

The CF all-in-one solar street light integrates a high-efficiency solar panel, LiFePO4 battery, MPPT controller, and high-brightness LED into a single IP66 housing. Pole-mount, no trenching, no grid power.

PDF WhatsApp

all in one

DB-820 All-in-One Solar Street Light

DB-820

The DB all-in-one solar street light integrates a high-efficiency solar panel, LiFePO4 battery, MPPT controller, and high-brightness LED into a single IP66 housing. Pole-mount, no trenching, no grid power.

PDF WhatsApp

solar accessory

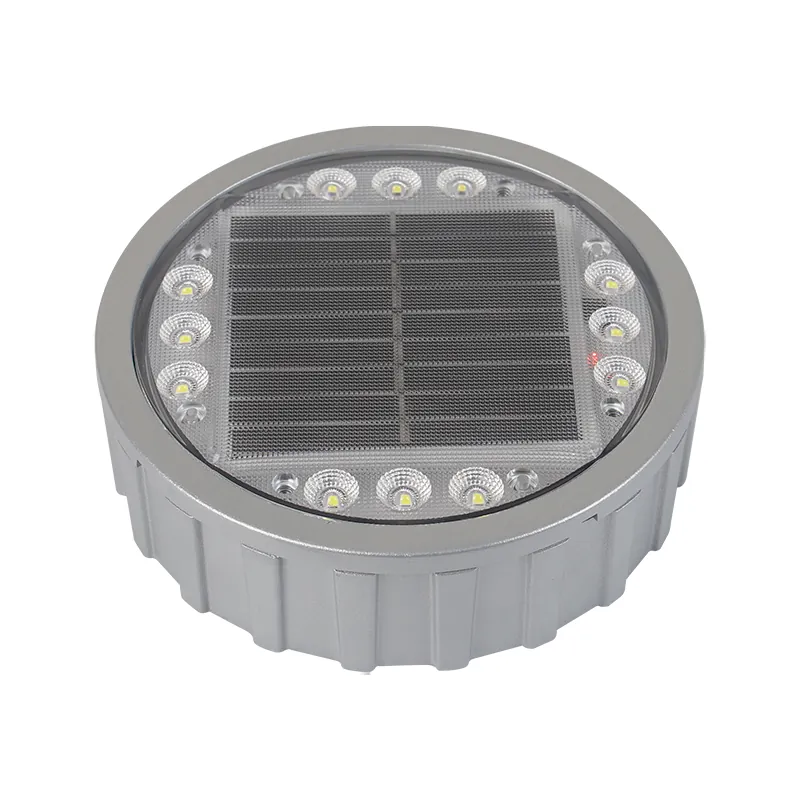

DM-125 Solar Stud / Floor Light

DM-125

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/2.2AH battery, walk-over rated.

PDF WhatsApp

solar accessory

DM-170 Solar Stud / Floor Light

DM-170

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/4.4AH battery, walk-over rated.

PDF WhatsApp

solar accessory

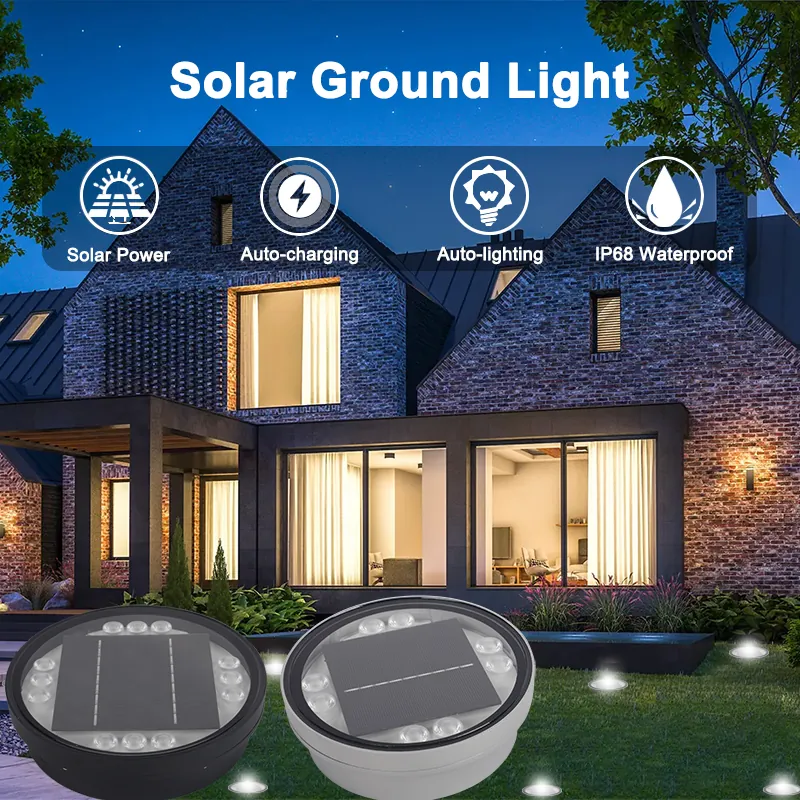

DM-210 Solar Stud / Floor Light

DM-210

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/4.4AH battery, walk-over rated.

PDF WhatsApp

solar accessory

DT-SMK Solar Mosquito Killer Light

DT-SMK

2-in-1 solar garden light and mosquito killer. Switchable white / purple modes, IP65, 4400mAh battery, H426/662/887MM.

PDF WhatsApp

solar accessory

DZ-0408 Solar Stud / Floor Light

DZ-0408

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/2.2AH battery, walk-over rated.

PDF WhatsApp

solar accessory

DZ-0808 Solar Stud / Floor Light

DZ-0808

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/4.4AH battery, walk-over rated.

PDF WhatsApp

industrial led

E1 LED High Bay Light (100W, AC Powered)

100W AC-powered LED high bay light with a bell / dome shaped heat-sink body, SMD 2835 LED, IP65 rating and AC 85~240V universal input.

PDF WhatsApp

industrial led

E2 LED High Bay Light (100W, AC Powered)

100W AC-powered LED high bay light with a flat round body with compact driver housing, SMD 2835 LED, IP65 rating and AC 85~240V universal input.

PDF WhatsApp

industrial led

E3 LED High Bay Light (100W, AC Powered)

100W AC-powered LED high bay light with a flat round panel with low-profile reflector, SMD 2835 LED, IP65 rating and AC 85~240V universal input.

PDF WhatsApp

solar new arrivals

ESP-B Portable Solar Power Station

ESP-B

Portable solar power station: 172WH/288WH capacity, 220V/50HZ, 160W/300W max load, solar-rechargeable.

PDF WhatsApp

solar new arrivals

ESP-C Portable Solar Power Station

ESP-C

Portable solar power station: 432WH/720WH capacity, 220V/50HZ, 300W/500W max load, solar-rechargeable.

PDF WhatsApp

solar new arrivals

ESP-D Portable Solar Power Station

ESP-D

Portable solar power station: 1075WH/1845WH capacity, 220V/50HZ, 1200W/2000W max load, solar-rechargeable.

PDF WhatsApp

ac led

FL LED Fishing Light (1000W, AC Powered)

FL · 1000W

1000W COB LED fishing light for commercial vessels. IP65, 110° adjustable, full-spectrum color options.

PDF WhatsApp

industrial led

GP LED Canopy Light (80W / 100W / 120W / 150W / 200W)

GP · 80/100W

LED canopy light for petrol stations, canopies, low-bay ceilings. 80/100W, SMD 5050 48pcs LED, IP65, AC 100-277V.

PDF WhatsApp

solar yard

LS-500 Solar Yard Light

LS-500

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/30AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar yard

LS-600 Solar Yard Light

LS-600

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/45AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar yard

LS-720 Solar Yard Light

LS-720

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/60AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar accessory

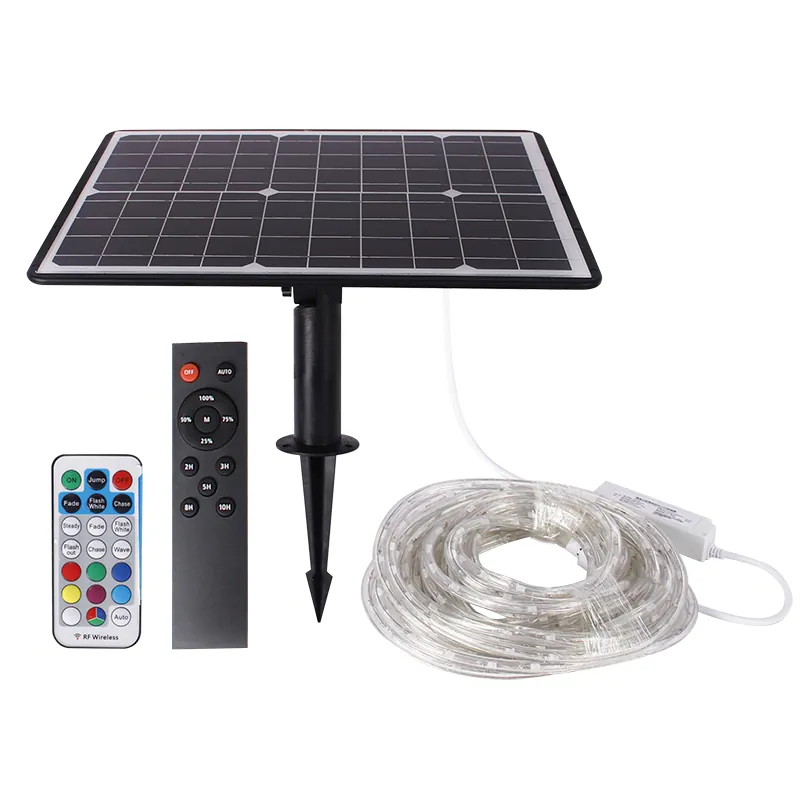

LS1-10 Solar Strip Light

LS1-10

Flexible solar LED strip with rechargeable battery and mono panel. 10m/10个光源 (10 pcs LED bulb) length, IP65, RGB optional.

PDF WhatsApp

solar accessory

LS1-180 Solar Strip Light

LS1-180

Flexible solar LED strip with rechargeable battery and mono panel. 10m/20m length, IP65, RGB optional.

PDF WhatsApp

solar accessory

LS1-20 Solar Strip Light

LS1-20

Flexible solar LED strip with rechargeable battery and mono panel. 20m/20个光源 (10 pcs LED bulb) length, IP65, RGB optional.

PDF WhatsApp

solar accessory

LS1-360 Solar Strip Light

LS1-360

Flexible solar LED strip with rechargeable battery and mono panel. 10m/20m length, IP65, RGB optional.

PDF WhatsApp

solar accessory

LS2-360 Solar Strip Light

LS2-360

Flexible solar LED strip with rechargeable battery and mono panel. 30m/40m length, IP65, RGB optional.

PDF WhatsApp

ac led

M2 Modular LED Flood Light (50W-1000W, 10 Wattage Options)

High-power modular LED flood light. SMD 3030 LED, 6kV surge protection, IP65, 180° adjustable bracket.

PDF WhatsApp

ac led

M23 Modular LED Flood Light (50W-1000W, 10 Wattage Options)

M23

High-power modular LED flood light. SMD 3030 LED, 6kV surge protection, IP65, 180° adjustable bracket.

PDF WhatsApp

ac led

M6 Modular LED Flood Light (M6-2 / M6-3 / M6-4)

High-power modular LED flood light. SMD 3030/5050 LED, 6kV surge protection, IP65, 180° adjustable bracket.

PDF WhatsApp

ac led

ML5 Modular LED Street Light (3 Sizes)

ML5

Modular AC LED street light in three sizes (96 / 144 / 192 SMD 3030), AC 85-305V, for 6-15m mounting.

PDF WhatsApp

ac led

ML5-2-100W Modular LED Street Light (AC Powered)

ML5-2-100W · 100W

The ML5-2-100W modular LED street light runs on AC mains (no solar), with SMD 3030 96pcs and a tool-free modular design for fast field service. 6-8m pole.

PDF WhatsApp

ac led

ML5-3-150W Modular LED Street Light (AC Powered)

ML5-3-150W · 150W

The ML5-3-150W modular LED street light runs on AC mains (no solar), with SMD 3030 144pcs and a tool-free modular design for fast field service. 8-10m pole.

PDF WhatsApp

ac led

ML5-4-200W Modular LED Street Light (AC Powered)

ML5-4-200W · 200W

The ML5-4-200W modular LED street light runs on AC mains (no solar), with SMD 3030 192pcs and a tool-free modular design for fast field service. 12-15m pole.

PDF WhatsApp

ac led

ML6 Modular LED Street Light (AC Powered)

ML6

The ML6 modular LED street light runs on AC mains (no solar), with SMD 3030 192pcs and a tool-free modular design for fast field service. 10-15m pole.

PDF WhatsApp

ac led

ML6B-2 Modular LED Street Light (AC Powered)

ML6B-2

The ML6B-2 modular LED street light runs on AC mains (no solar), with SMD 3030 120pcs and a tool-free modular design for fast field service. 6-15m pole.

PDF WhatsApp

ac led

ML6B-3 Modular LED Street Light (AC Powered)

ML6B-3

The ML6B-3 modular LED street light runs on AC mains (no solar), with SMD 3030 180pcs and a tool-free modular design for fast field service. 6-15m pole.

PDF WhatsApp

ac led

ML6B-4 Modular LED Street Light (AC Powered)

ML6B-4

The ML6B-4 modular LED street light runs on AC mains (no solar), with SMD 3030 240pcs and a tool-free modular design for fast field service. 6-15m pole.

PDF WhatsApp

ac led

ML7 Modular LED Street Light (2 Sizes)

ML7

Slim modular AC LED street light in two sizes (60 / 120 SMD 5050), AC 85-305V, for 8-15m mounting.

PDF WhatsApp

ac led

ML7-2 Modular LED Street Light (AC Powered)

ML7-2

The ML7-2 modular LED street light runs on AC mains (no solar), with SMD 5050 60pcs and a tool-free modular design for fast field service. 8-10m pole.

PDF WhatsApp

ac led

ML7-3 Modular LED Street Light (AC Powered)

ML7-3

The ML7-3 modular LED street light runs on AC mains (no solar), with SMD 5050 120pcs and a tool-free modular design for fast field service. 10-15m pole.

PDF WhatsApp

solar garden

SG-1 Solar Garden Light

SG-1

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-10 Solar Garden Light

SG-10

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-12 Solar Garden Light

SG-12

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-2 Solar Garden Light

SG-2

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-3 Solar Garden Light

SG-3

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-4 Solar Garden Light

SG-4

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar yard

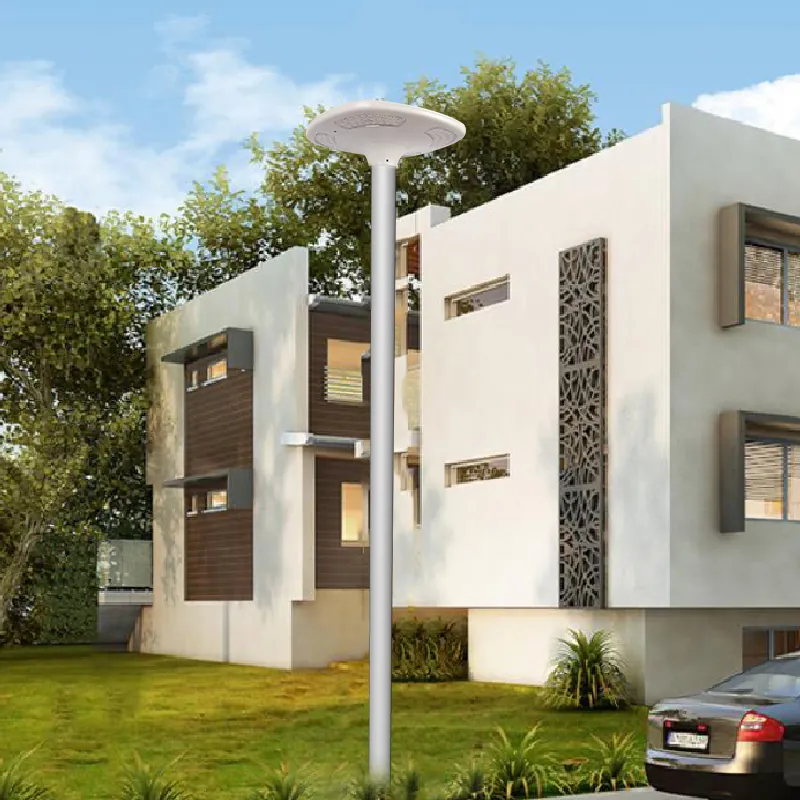

SG-485 Solar Yard Light

SG-485

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/45AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar garden

SG-5 Solar Garden Light

SG-5

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar yard

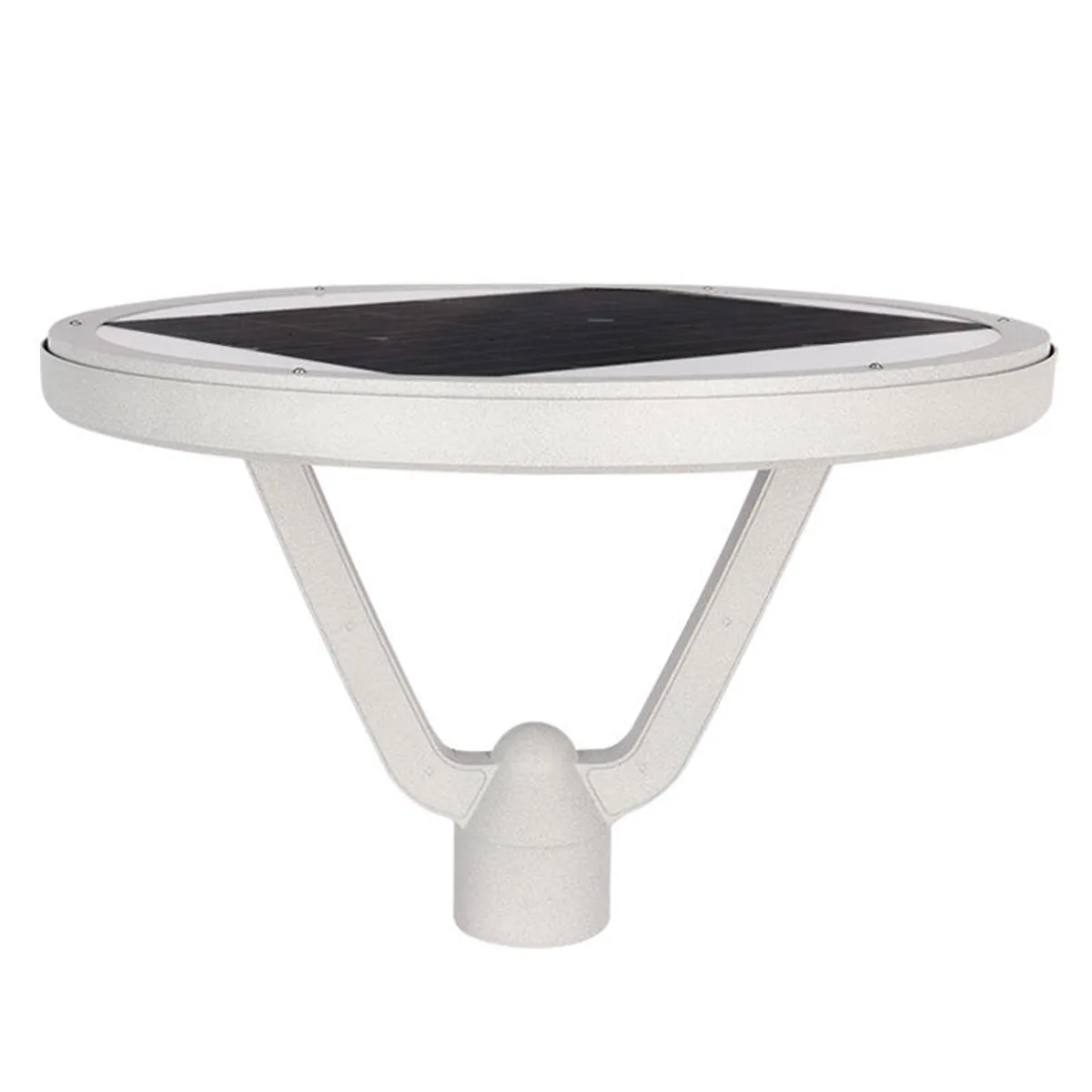

SG-540 Solar Yard Light

SG-540

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/45AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar garden

SG-6 Solar Garden Light

SG-6

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar yard

SG-670 Solar Yard Light

SG-670

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/100AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar garden

SG-7 Solar Garden Light

SG-7

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-8 Solar Garden Light

SG-8

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar garden

SG-9 Solar Garden Light

SG-9

Decorative pillar-top solar garden light for pathways, gardens, and landscape lighting. IP65, 3.7V/4400mAH battery, 3 color temperatures selectable.

PDF WhatsApp

solar yard

SG-R6 Solar Yard Light

SG-R6

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/60AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar yard

SG-Y395 Solar Yard Light

SG-Y395

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/30AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar yard

SG-Y505 Solar Yard Light

SG-Y505

Large-format solar yard light with 150-180 lm/W LED output. IP65, 3.2V/30AH battery, ideal for courtyards, plazas, parking areas.

PDF WhatsApp

solar yard

SG-Y540 Solar Yard Light

SG-Y540

Round solar yard light, Φ540mm, SMD 3535 150LM/W, 45AH battery, 30W solar panel, IP65, dusk-to-dawn.

PDF WhatsApp

solar furniture

SUB-01 Solar Table

SUB-01

Solar-powered outdoor table with USB charging, solar charging and Bluetooth speaker. Aluminum frame, 12V/36AH battery, MPPT controller.

PDF WhatsApp

solar furniture

SUT-01 Solar Bench

SUT-01

Solar-powered outdoor bench with USB charging, solar charging and Bluetooth speaker. Aluminum frame, 12V/36AH battery, MPPT controller.

PDF WhatsApp

solar accessory

SW-1 Solar Wall Light

SW-1

Decorative solar wall light for building facades, entryways, garages and courtyard perimeters. IP65, 8.4V/6.6AH, 10V/12W panel.

PDF WhatsApp

all in one

TL35125 All-in-One Solar Street Light

TL35125

The TL all-in-one solar street light integrates a high-efficiency solar panel, LiFePO4 battery, MPPT controller, and high-brightness LED into a single IP66 housing. Pole-mount, no trenching, no grid power.

PDF WhatsApp

all in one

TL41145 All-in-One Solar Street Light

TL41145

PDF WhatsApp

split

TSP-3 Cylindrical Solar Panel

TSP-3 · 100W*3

Cylindrical solar panel for split solar street light systems. 100W*3 output, L1000*W171*H171MM, 145mm mount, IP65 sealed.

PDF WhatsApp

split

TSP-4 Cylindrical Solar Panel

TSP-4 · 100W*4

Cylindrical solar panel for split solar street light systems. 100W*4 output, L1000*W171*H171MM, 145mm mount, IP65 sealed.

PDF WhatsApp

split

TSP-5 Cylindrical Solar Panel

TSP-5 · 100W*5

Cylindrical solar panel for split solar street light systems. 100W*5 output, L1000*W171*H171MM, 145mm mount, IP65 sealed.

PDF WhatsApp

solar accessory

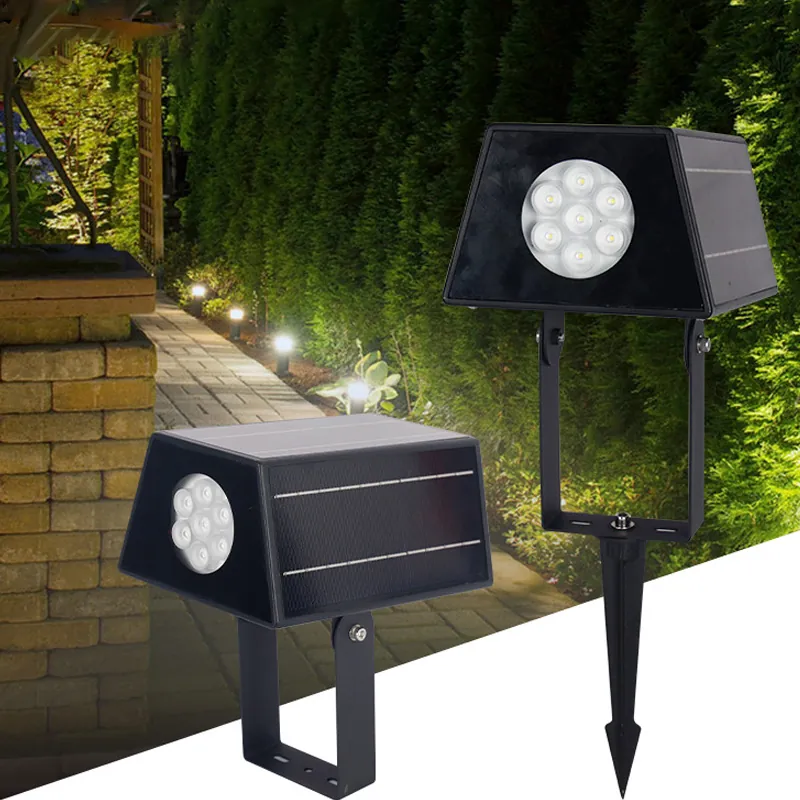

TX-07壁灯 Solar Wall Light & Spot Light

TX-07壁灯

Solar-powered wall light / spot light, 3.2V/6AH battery + 5V/5W×3 panels, SMD 3030 150LM/W LED, IP65 rated. Up-and-down dual emission. 单光源/双光源 optional.

PDF WhatsApp
